P5+experimental 3D printing

P5+experimental 3D printing

work team: Tommaso Casucci, Michele Semeghini

This experimental series of tests is a step forward in a larger research project focused on the exploration of the possible interactions between digital computation and complex and selforganizing physical processes.
The series is  developed on the base of a small block of code refined during the preparation of the workshop ‘BioLogic:living structures and swarm bodies’ and aimed to facilitate direct interaction from Processing to FDM 3Dprinters through the generation of G-code instructions.
The produced objects try to combine the potential offered from generative strategies in the exploration of non-standard deposition processes and the capacity of plastic threads to self-organize in curly geometries once extruded from the 3D printer.
The work consisted in a first part focused in the calibration and mapping of the different material behavoiurs achievable based on the variation of different extruding conditions. The parameters we found to affect the more the extruded material behaviour was:
. extrusion quantity
. extrusion velocity
. nozzle distance from the deposition plate
. material type
. nozzle size
Once a comprehensive catalogue of variations was completed, some of the observed behaviours was reproduced in a series of more complex formations where the values of one or more parameters was varied according to different design purposes to modulate structural, aesthetical or performative qualities in the final objects.

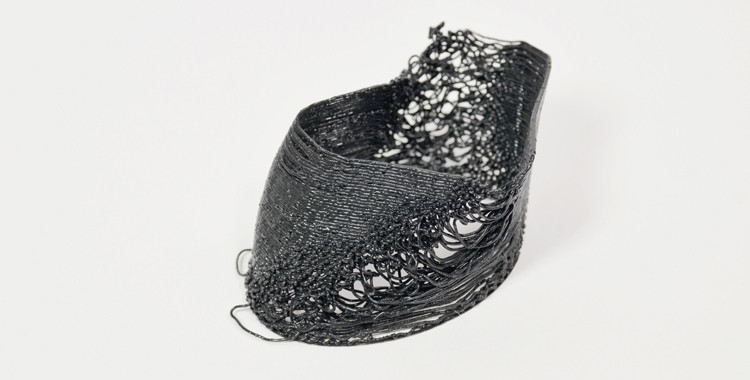

A short selection of 3Dprinted samples and screenshots from the Processing application is reported below :

20140915_184504_screenshot 20140915_183751_screenshot
020 021 022 043010 012
